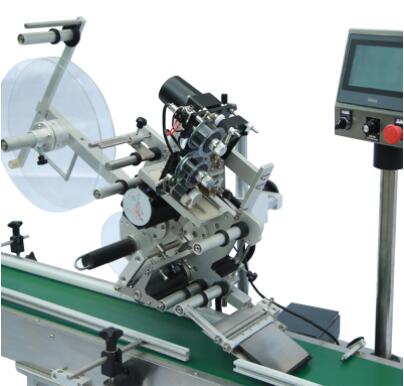

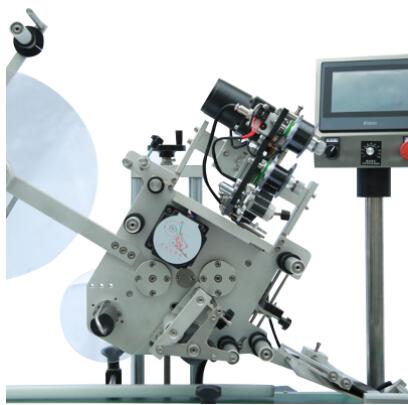

Labeling Machine suitable for flat surface:
Parameter
Data
Label Specification
adhesive sticker, transparent or opaque
Labeling Tolerance
±1mm
Capacity(pcs/min)
40 ~120
Suit label size(mm)
L: 10-250mm; W(H): 15-180mm
Machine Size(L*W*H)
1550mm*700mm*1700mm
Voltage
220V/50(60)HZ;Can be customized
Power
1.8KW
N.W (KG)
230KG
Apply labels inside diameter
￠76mm
Apply labels outside diameter
￠360mm
book,carton,battery,flat or square bottles,box,bag,plastic ampoule...
Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
This machine is used for using the Taiwan touching type of PLC control or knob control.
It is made up of photoelectricity equipment of Japan OMRON. Synchronization electrical,timing electrical, conveyer belt. Import strap etc correlative part.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
