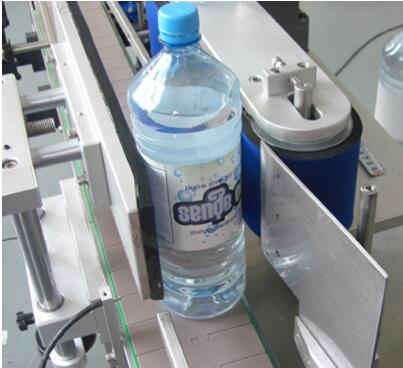

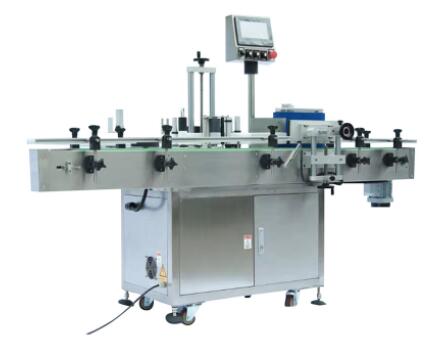

It applies to label for round bottle and round products in a variety of industries, can be connected with printer, it can output production record and can monitor the production conditions automatically
Machine and spare parts all use material S304 stainless steel and anodized senior aluminum alloy,with high corrosion resistance and never rust.
This machine is used for using the Taiwan touching type of PLC control or knob control.
It is made up of photoelectricity equipment of Japan OMRON. Synchronization electrical,timing electrical, conveyer belt. Import strap etc correlative part.
Parameter
Data
Model
BL-180
Bottle diameter
18---150mm
Bottle Height
40---350mm
Labeling Tolerance
±1mm
Capacity(pcs/min)
30---120
Suit label size(mm)
L: 10-250mm; W(H): 15-180mm
Machine Size(L*W*H)
2000mm*850mm*1550mm
Voltage
220V/50(60)HZ;Can be customized
Power
1.5KW
N.W (KG)
220KG
Apply labels inside diameter
76mm
Apply labels outside diameter
360mm
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
