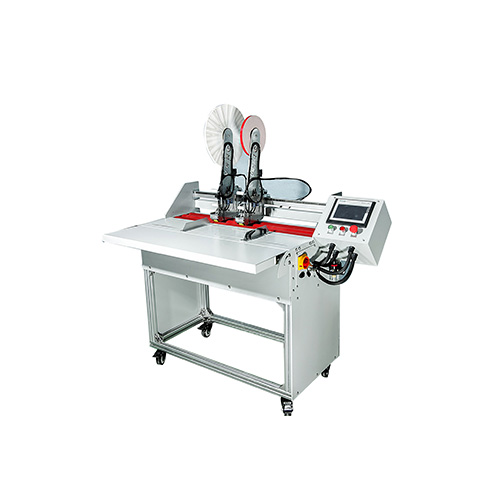

Semi-auto Double-side tape Adhesive Gluing Machine

Category： Double sided tape application machine
Views：372
Automatic Grade:Semi-automatic
PLC Language:English, Spanish,Russia
Machine speed:30m/min
Max product width:90-1060mm
Product description：Semi-auto Double-side tape Adhesive Gluing Machine
INQUIRY

Semi-auto Double-side tape Adhesive Gluing Machine

Main performance and features:

1,Used for applying the double sided tape ,sealing tape and PVC tape on the envelope ,A4 paper ,carton box ,PVC material ,decoration material and so on .

2,It is widely used in building materials, packaging, printing and many other industries

3,Instead of manual operation,and saving the labor force.

4,It is light and flexible,convenient to move, PLC programming, touching screen, operation simple.

5,With an adjustable feeding table and ability to load sheets up to 142x100cm it is the perfect machine for small scale work.

Specification :

Model	DMHA-1060
Max product width	90-1060mm,
Machine speed	32m/min
PLC Language	English, Spanish,Russia
Electrical need	110-220V,50HZ
Application Material	Envelope ,A4 paper ,carton box ,PVC material
Max material thickness	20mm
Max number of spots in line	4
Min tape length	35mm
Min distance between application and the next	25mm
Internal diameter roll tape	76mm
Tape width	4mm up to 33mm
Tape applicator/taping head	1,2,3 or 4
Minimum Product Thickness	80gsm
Weight	120kg
Dimension	1530x1030x1520mm (L x W x H)
Warranty:	12 Months
